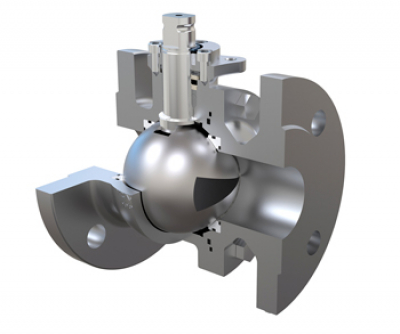

V port Ball Valve-Manual Type

Pressure Rate: PN10,PN16,Class150 to 450
Size range:1/2”-16” DN15-DN400
Structure: Flange&Flangeless
Connection Standard:EN1092&ANSI 16.5
Body Material:WCB,CF8M,CF8,904L
Ball Material:SS304/SS316
Shaft material:17-4PH/F316
Seat Available: Stellite,Tungsten Carbide, PTFE
Actuation: Lever&Gear box

• One piece body design reduces leakage paths.
• V-ball provides large dynamic pass of fluid, including solid particles.
• V-ball with top and bottom bearings reduces operational torque.
• Rotary-valve design allows the cutting of solids between the v-ball and the seats enabling the fluid to pass smoothly without obstructions.
• Spring live-loaded metal seats with Viton or graphite backing.
• Soft seats and metal seats to satisfy various applications. Seats can be easily changed in a few simple steps.
